Procedure: Cluster monitoring

Testing and Commissioning Procedure of Cluster

A server cluster is composed of 2 rigorously identical servers configured in normal / backup high availability. The first server in normal mode is called “primary”, the backup server is called “secondary”.

At a minimum, each server uses 3 network adapters configured as follows:

• ETH1 = Main Network Interface = IP_Server
• ETH2 = bridged network interface for virtual machines = IP_Br0
• ETH3 = “Private” server synchronization network interface, direct link between the cluster nodes.

On HP servers, the HP_ILO management interface for monitoring the machine can be set to benefit from the information of the server's physical state (see ILO monitoring documentation).

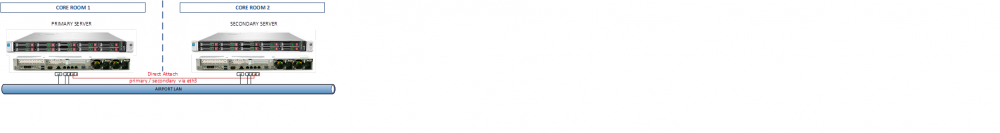

The 2 servers are connected to each other by a link allowing to have the servers in 2 different and distant technical premises to ensure the physical integrity of the equipment and the non-propagation of a physical damage on one of the two rooms.

The Linux services used for the Cluster are:

• Drbd = data replication between disk spaces
• Corosync = Configuration and scheduling of Cluster services
• Peacemaker = Monitoring cluster services

The services configured and monitored by the Cluster are:

• Apache = Web server
• MySQL = Database
• Samba = File Sharing
• Libvirtd = KVM Virtualization Engine
• Libvirtguest = Virtualization Management Tools
• IP Cluster / Route Cluster = Active Network Node

Goto « http://ip_server/web/system/ezmonitor »

In a terminal or by ssh access on one of the cluster nodes use the drbd-overview command

Here the 2 primary and secondary servers are perfectly synchronized at the data level since the status “UpToDate” is effective on both servers.

Primary / Secondary Uptodate / Uptodate shows the synchronization status of the 2 nodes of the cluster.

In case the DRBD service is not started correctly (Cluster out of service), it is possible to restart the server data synchronization service via the following command:

# service drbdserv –full-restart

To know the state of the services managed by the cluster via a terminal or by access ssh, use the command crm status

The command returns the configuration and cluster status

The first block indicates the state of the cluster

Last updated: Sun Sep 23 08:21:21 2018

Last change: Tue Aug 28 09:42:27 2018 via crm_attribute on dzacupsvr2

Stack: corosync

Current DC: dzacupsvr2 (34212362) - partition with quorum

Version: 1.1.7-2.mga1-ee0730e13d124c3d58f00016c3376a1de5323cff

2 Nodes configured, unknown expected votes

11 Resources configured.

The second block tells you which is the primary node, and where are the services:

Online: [ dzacupsvr dzacupsvr2 ]

Resource Group: services

samba (lsb:smb): Started dzacupsvr

apache (ocf::heartbeat:apache): Started dzacupsvr

mysql (ocf::heartbeat:mysql): Started dzacupsvr

libvirtd (lsb:libvirtd): Started dzacupsvr

libvirt-guests (lsb:libvirt-guests): Started dzacupsvr

Master/Slave Set: drbdservClone [drbdserv]

Masters: [ dzacupsvr ]

Slaves: [ dzacupsvr2 ]

fsserv (ocf::heartbeat:Filesystem): Started dzacupsvr

Resource Group: iphd

clusterip (ocf::heartbeat:IPaddr2): Started dzacupsvr

clusterroute (ocf::heartbeat:Route): Started dzacupsvr

⇒ the 2 servers are “online”, and each service is operational on the primary.

See the cluster configuration, use the following command:

# crm configure show

Example of a configuration file of the Abidjan cluster:

for example « abjairsvr2 »
